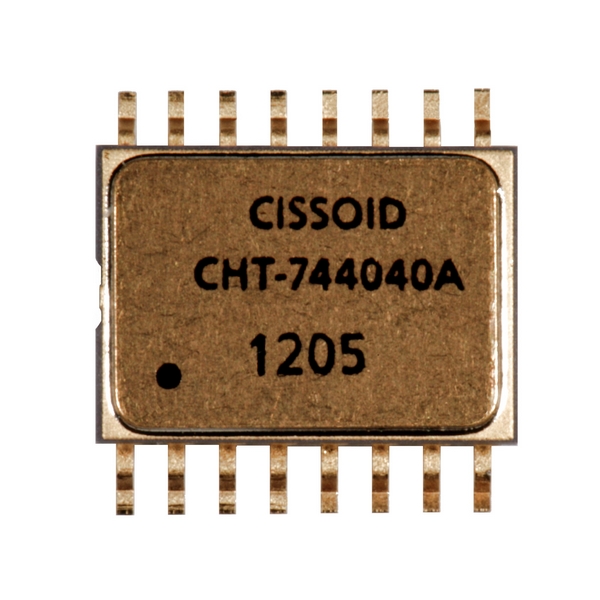

CISSOID CHT-744040A-CSOIC16-T

Product Info

General Description

The CHT-74-4040 is a 12-stage asynchronous binary counter.

The device is incremented on the falling edge (negative transition) of the CLOCK input. All the outputs are reset to a low level by applying a logical high on the CLEAR input.

In frequency divider applications, the clock can be divided by up to 4096. The device is pin compatible with the industry standards 74xx4040, / CD4040. As such, CISSOID CHT-74-4040 can replace advantageously the above devices and bring a lifetime increase of 1 to 2 decades depending on the temperature range; it also increases the operating temperature capability to -55° +225°C which cannot be achieved by traditional products.

The CHT-74-4040 can operate with supply voltages from 3.3 to 5V (±10%).

Features

Functional from -55 to +225°C (Tj)

3.3 to 5V (±10%) supply voltages

Latchup-free at any supply and temperature condition

Available in CDIL16 and CSOIC16 hermetic standard package

Typical propagation delay: 19 ns

Low quiescent current: 21µA Max (@225°C, 5V)

Output drive capability: 4mA Max

Validated at 225°C for 10000 hours (and still on-going)

Applications

Clock generation

Frequency division
