- General Description
- Features
- 10 bit-resolution with optional internal clock, Sample/Hold, µC interface with parallel or serial data transfer
- Up to 25kS/s
- +5V power supply only
- Low total supply current ( <250 µA)
- Operational from -55 to +225°C with very low drift

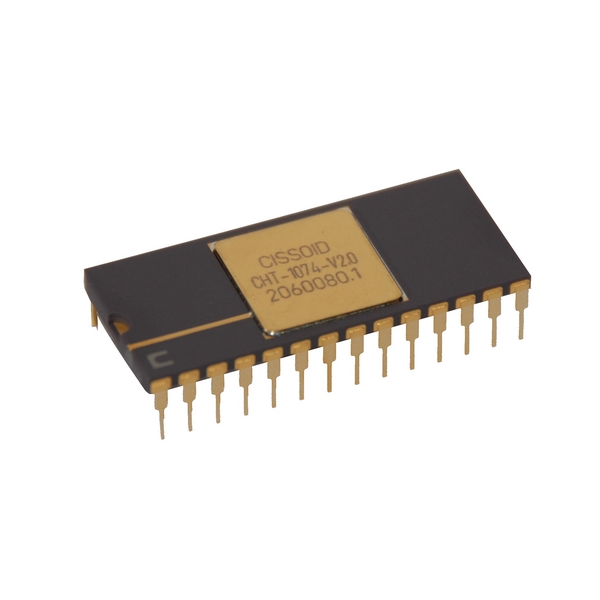

- Available in die and DIL28
- Applications
- Oil&Gas, Industrial, Automotive, Aeronautics & Aerospace
- Electric Power Conversion
The CHT-ADC10 is a high-temperature, ultra-low-power, highly stable analog-todigital converter. This successive approximation ADC is based on an R-2R network and features 10 bits of resolution and a strictly monotonic characteristic from -55°C up to +225°C. An optional internal clock generator is included to provide standalone operation. It includes Sample&Hold and µP interface with possibility of serial data transfer. Both parallel and serial interfaces can be used simultaneously. A special control line allows for doubling the frequency of the internal clock generator for reduced throughput time. The maximum sampling rate is 25kS/s. Several input ranges are available from -15V up to +10V. It only requires a +5V supply and an external +5V reference.
The CHT-ADC10 is latch-up free and the fabrication technology guarantees a high reliability at extreme temperatures.
Electrical Characteristics
Converter Type | ADC, SUCCESSIVE APPROXIMATION |
JESD-30 Code | R-CDIP-T28 |
JESD-609 Code | e4 |
Length | 28.58 |
Linearity Error-Max (EL) | 0.1465 |
Number of Analog In Channels | 1 |
Number of Bits | 10 |
Number of Functions | 1 |
Number of Terminals | 28 |
Output Bit Code | BINARY |
Output Format | SERIAL, PARALLEL, WORD |
Package Body Material | CERAMIC, METAL-SEALED COFIRED |
Package Code | DIP |
Package Shape | RECTANGULAR |
Package Style | IN-LINE |
Peak Reflow Temperature (Cel) | NOT SPECIFIED |
Sample-and-Hold/Track-and-Hold | SAMPLE |
Seated Height-Max | 3.89 |
Supply Voltage-Nom | 5 |
Surface Mount | NO |
Terminal Finish | GOLD |
Terminal Form | THROUGH-HOLE |
Terminal Pitch | 2.54 |
Terminal Position | DUAL |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Width | 15.24 |
