In Stock: 0
Available: 2 Delivery
MOQ: 5
Lead Time: 12 weeks
Package Quantity: 5
HTS Code: 8542.33.0000
ECCN: EAR99
COO: BE
Quantity | Cost |
---|---|
5-24 | $265.69 |
25+ | $252.41 |
Secure Payment Methods:
Need more Info?
Product Info
- General Description
- Features
- Junction operating temperature from -55°C to 225°C
- Single supply operation: 5V ±10%
- Low offset: 50µV typ, 100 µV max
- Low noise: 5 µVpp typ
- High CMRR: 85 dB min
- Product gain bandwidth: 2.8 MHz typ
- Stable for gains above 3 (with <50pF load) and 5 (with 50 200pF load)
- Slew rate: 2.7 V/µs typ
- Rail-2-rail input and output
- Low bias input current: <10 pA typ
- Quiescent current: 1.2 mA typ.
- Automatic offset compensation
- Stand-by current: 7 µA max
- Latch-up free

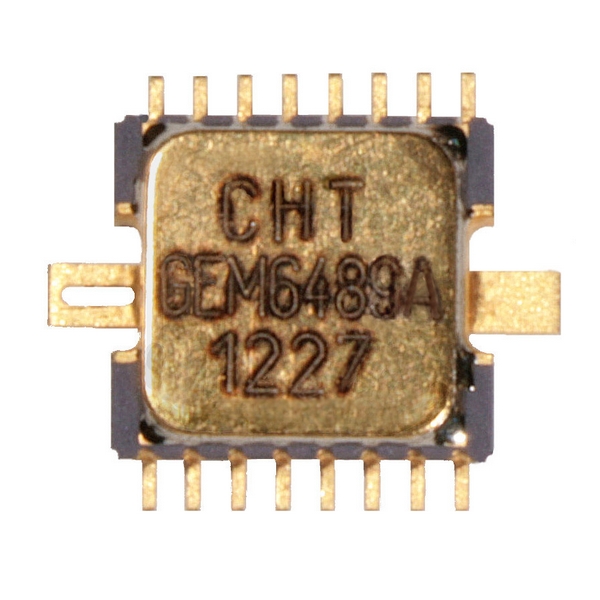

- Package: TDFP16
- Applications
- High temperature instrumentation & data acquisition
- Signal conditioning & instrumentation amplifiers for temperature, pressure, motion, speed and position sensors
- Strain gage amplifiers
- Photodiode and PMT amplifiers
- Charge amplifiers
- Current sensing
- Transmitters (4-20mA, etc.)
CHT-OPAL is an ultra high-precision, dual operational amplifier designed for applications that require very low offset and very low noise. Both amplifiers can be configured as a differential amplifier or as an instrumentation amplifier (combined with a third, external amplifier cell and with external resistors). Key features include single 5V nominal power supply and rail-to-rail inputs and outputs. Best-in-class precision on the full temperature range -55°C to +225°C encompass low input offset (internally compensated) and low noise. The internal circuitry uses a clock that is internally generated.
There is a spread-spectrum mode for this clock. The user can decide not to use this internal clock and rather provide it from external circuitry (e.g. for synchronization purposes).
CHT-OPAL also features a Stand-by mode that disables the two Op Amps and place the circuit in a low power consumption mode when the function is not needed.
Electrical Characteristics
Amplifier Type | OPERATIONAL AMPLIFIER |
Common-mode Reject Ratio-Nom | 105 |
Input Offset Voltage-Max | 100 |
JESD-30 Code | R-PDFP-F16 |
Length | 5.5 |
Number of Functions | 1 |
Number of Terminals | 16 |
Package Body Material | PLASTIC/EPOXY |
Package Code | HDFP |
Package Shape | RECTANGULAR |
Package Style | FLATPACK, HEAT SINK/SLUG |
Peak Reflow Temperature (Cel) | NOT SPECIFIED |
Seated Height-Max | 1.32 |
Slew Rate-Nom | 2.7 |
Sub Category | Operational Amplifier |
Supply Voltage Limit-Max | 6 |
Supply Voltage-Nom (Vsup) | 5 |
Surface Mount | YES |
Terminal Form | FLAT |
Terminal Pitch | 0.635 |
Terminal Position | DUAL |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Unity Gain BW-Nom | 2800 |
Width | 5 |
