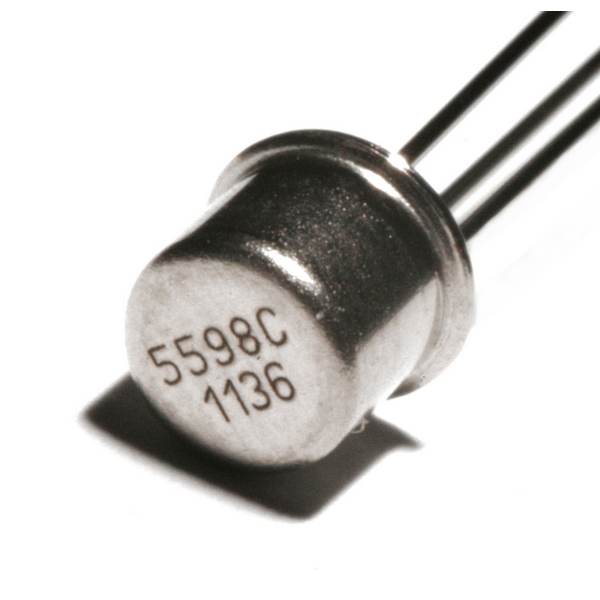

Product Info
This product is EOL. Please see NAC EOL Notice for Cissoid.pdf
For more information or contact sales@nacsemi.com
Electrical Characteristics
| Additional Feature | PD-CASE |
| Case Connection | ANODE |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| JEDEC-95 Code | TO-18 |
| JESD-30 Code | O-MBCY-W3 |
| Number of Elements | 2 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 225 |
| Operating Temperature-Min | -55 |
| Output Current-Max | 0.28 |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Dissipation-Max | 0.35 |
| Rep Pk Reverse Voltage-Max | 80 |
| Reverse Recovery Time-Max | 0.056 |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
