Product Info
This product is EOL. Please see NAC EOL Notice for Cissoid.pdf
For more information or contact sales@nacsemi.com
- Features
- 1V to 20V dropout Voltage @400mA(1)
- 2V to 20V dropout Voltage @1A(1)
- Max 1A output current @ 225°C
- 60dB input ripple rejection (0-100Hz)
- C load from 100nF to 1000µF, large ESR range
- Output voltage programmable by bonding option (bare die version)
- Available in TO-254 package and bare die form (contact CISSOID)
- The start-up is operative over the whole temperature range
- Latch-up free
- Validated at 225°C for 43800 hours (and still on-going)
- Applications
- Power supplies for high-temperature electronic systems used in Automotive, Aeronautics, Aerospace or Oil&Gas applications
- General Description
- Features
- 1V to 20V dropout Voltage @400mA(1)
- 2V to 20V dropout Voltage @1A(1)
- Max 1A output current @ 225°C
- 60dB input ripple rejection (0-100Hz)
- C load from 100nF to 1000µF, large ESR range
- Available as die or in custom package on demand. (3-pin compatible)
- The start-up is operative over the whole temperature range
- Latch-up free
- Applications
- Power supplies for high-temperature electronic systems used in Well logging, Automotive, Aeronautics or Aerospace applications
The CHT-LDOS is a 1A, low-dropout linear voltage regulator compatible with hightemperature environments. Typical operation temperature range extends from -55°C to 225°C.
The circuit is stable throughout the whole temperature range and under a large choice of capacitive loads.
The minimum dropout voltage (Vin-Vout) is 2V with a 1A load current at 225°C and 1V for load currents lower than 400mA. The dropout voltage can span from 1 Volts to 20 Volts.
The circuit is a one-die solution. CHT-LDOS is available in TO-254 package.

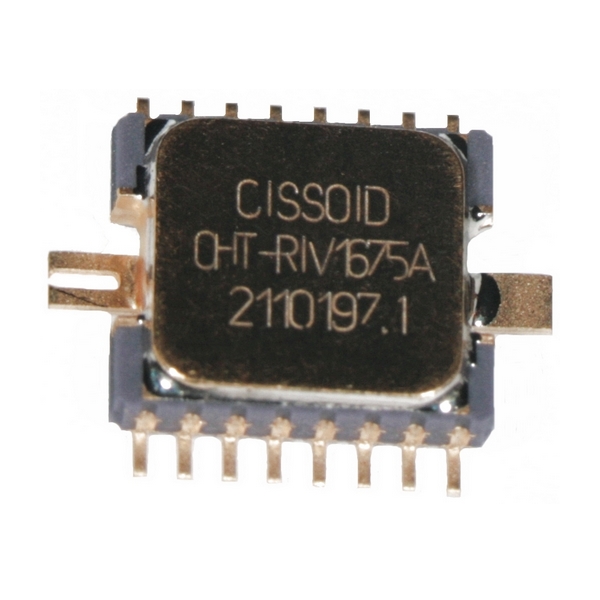

Electrical Characteristics
| Amplifier Type | COMPARATOR |
| Input Offset Voltage-Max | 5200 |
| JESD-30 Code | R-CDFP-F16 |
| Length | 5.5 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Output Type | PUSH-PULL |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Code | HDFP |
| Package Shape | RECTANGULAR |
| Package Style | FLATPACK, HEAT SINK/SLUG |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Response Time-Nom | 42 |
| Seated Height-Max | 1.32 |
| Sub Category | Comparator |
| Supply Voltage Limit-Max | 6 |
| Supply Voltage-Nom (Vsup) | 5 |
| Surface Mount | YES |
| Terminal Form | FLAT |
| Terminal Pitch | 0.635 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Width | 5 |
