Product Info
- General Description
- Applications
- Features
- Qualified from -55 to +225°C (Tj)
- Drain voltage up to 80V
- Typ output current 300mA @ 225°C
- RDSon = 15 @ 225°C
- VGS = -0.5V to +5.5V
- Reverse ESD diode between gate and source
- Validated at 225°C for 1000 hours (and still on-going)
- Available in TO18 package (other packages available upon request)

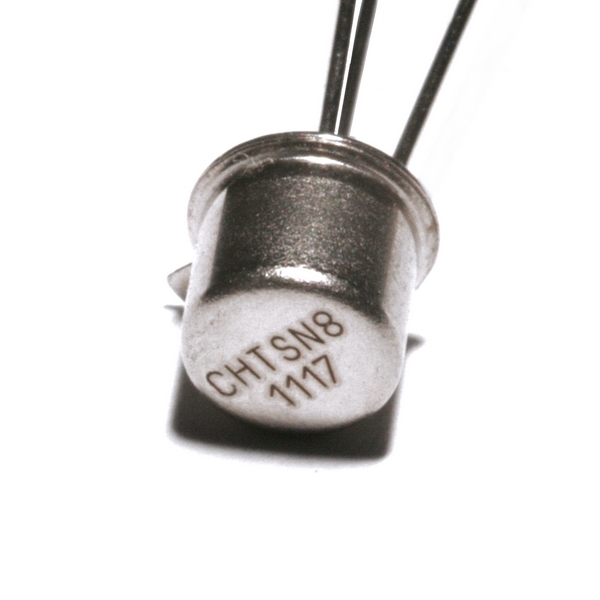

The CHT-SNMOS-80 is a high voltage 80V N-channel small-signal MOSFET designed to achieve high performance in an extremely wide temperature range: typical operation temperature goes from -55°C to 225°C.
Sensor interfaces, such as piezoelectric sensor, guard amplifiers, switches of high and medium impedance loads, levelshifters and high temperature diodes.
Electrical Characteristics
Case Connection | SOURCE |
Configuration | SINGLE WITH BUILT-IN DIODE |
DS Breakdown Voltage-Min | 80 |
FET Technology | METAL-OXIDE SEMICONDUCTOR |
JEDEC-95 Code | TO-18 |
JESD-30 Code | O-MBCY-W3 |
JESD-609 Code | e3 |
Number of Elements | 1 |
Number of Terminals | 3 |
Operating Mode | ENHANCEMENT MODE |
Package Body Material | METAL |
Package Shape | ROUND |
Package Style | CYLINDRICAL |
Peak Reflow Temperature (Cel) | NOT SPECIFIED |
Polarity/Channel Type | N-CHANNEL |
Surface Mount | NO |
Terminal Finish | TIN |
Terminal Form | WIRE |
Terminal Position | BOTTOM |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Transistor Application | SWITCHING |
Transistor Element Material | SILICON |
