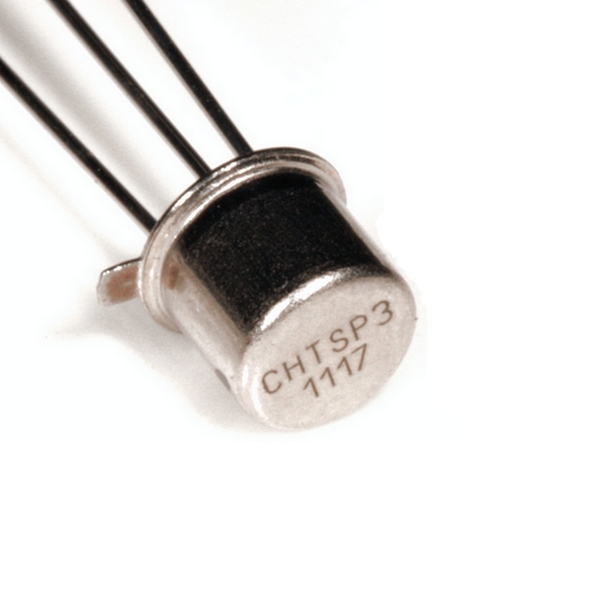

Product Info
This product is EOL. Please see NAC EOL Notice for Cissoid.pdf
For more information or contact sales@nacsemi.com
Electrical Characteristics
| Case Connection | SOURCE |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 30 |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-18 |
| JESD-30 Code | O-MBCY-W3 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | P-CHANNEL |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
