Product Info
- General Description
- Features
- Qualified from -55 to +175°C (Tj)
- 3.3 to 5V (±10%) supply voltages
- Latchup-free at any supply and temperature condition
- Validated at 175°C for 20000 hours (and still on-going)
- Available in plastic SOI16 standard package
- Applications
- Well logging
- Automotive, Aeronautics & Aerospace
- Harsh Environments

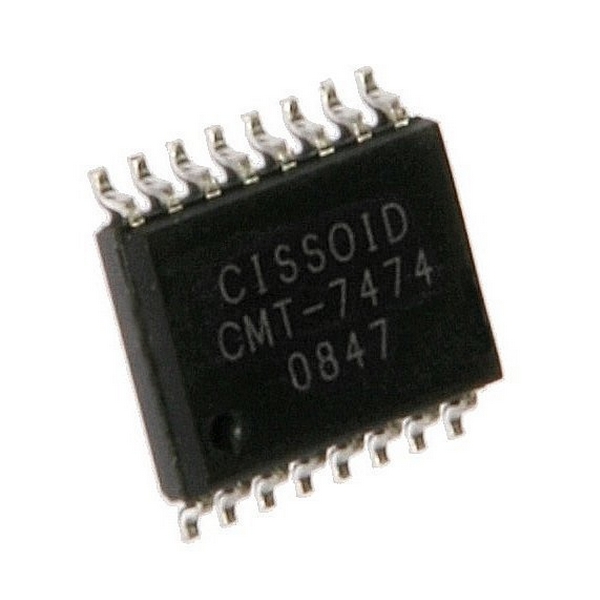

The CMT-7474 is a dual positive-edgetriggered D type Flip-flop. Data on the D input is transferred to the output on a rising edge of the clock impulse.
Rn and Sn are asynchronous reset and set. On a low state, they operate on the outputs regardless of the other inputs.
The CMT-7474 can operate with supply voltages from 3.3 to 5V (±10%).
Electrical Characteristics
| Additional Feature | SEATED HT-CALCULATED |
| Family | TTL/H/L |
| JESD-30 Code | R-PDSO-G16 |
| Length | 10.285 |
| Logic IC Type | D FLIP-FLOP |
| Number of Bits | 1 |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Propagation Delay (tpd) | 40.5 |
| Seated Height-Max | 2.82 |
| Supply Voltage-Max (Vsup) | 5.5 |
| Supply Voltage-Min (Vsup) | 3.3 |
| Supply Voltage-Nom (Vsup) | 5 |
| Surface Mount | YES |
| Technology | TTL |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Width | 7.605 |
| fmax-Min | 73 |
