CISSOID CMT-TIT8244A

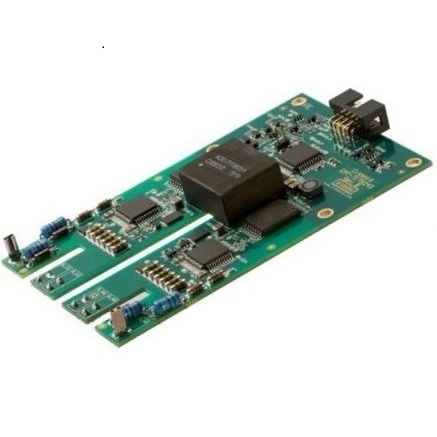

1700V High Temperature (125C) Half-Bridge SiC MOSFET Gate Driver, PCB


RoHS Compliant

Ordering Info

In Stock: 5

MOQ: 1

Lead Time: 12 weeks

Package Quantity: 1

HTS Code: 8542.39.0000

ECCN: EAR99

COO: BE

Quantity Cost
1-4 $243.80
5+ $231.61


Secure Payment Methods: Accepted Payment Methods:  Visa, Mastercard, American Express, Discovery Card PayPal accepted
Need more Info?

Product Info

Designed to drive 62mm 300A SiC MOSFET Power Modules
Board size: 69 mm * 116 mm
Operating temperature: -40°C to 125°C
Bus voltage:1200V/1700V max
Isolation: 3600VAC @50Hz (1min)
14mm creepage/12mm clearance
> 50kV/µs dV/dt immunity
Low parasitic capacitance between primary and high-side: 10pF
Switching frequency up to 100kHz
Delay (PWM to VOUT): 200ns typ.
FET Gate rise/fall time:40ns typ.
Gate driving voltages: +20V/-5V (3% precision)
Low inductance gate loop design
Single power supply: 12V-18V
RS422 PWM input interface
Open-drain fault output
Under voltage lockout (UVLO)
On-board optional non-overlap generation (via jumper)
Anti-overlap protection (on PWM inputs)
Glitch suppressor on PWM inputs
Desaturation protection
Gate-Source short-circuit protection
